Specifications

Manufacturer

The specified Day lighting System shall be the Sky Tunnel manufactured by SG Eco Industries Inc.

Available Sizes

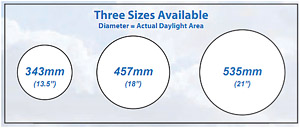

Sky Tunnel tube sizes

Our latest model, the XL2, is available in 3 sizes. This size is a TRUE light area dimension, and is not reduced by a ceiling trim, like most other skylights in the market, where a 14” unit only provides 13” of daylight. Our 3 sizes are:

  • 343mm (13.5”)
  • 457mm (18”)
  • 535mm (21”)

Dome

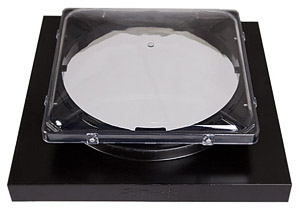

Sky Tunnel dome

The specially designed dome is made from high-impact, UV-stabilized acrylic. For certain markets such as the UK, and certain areas of the USA, a Polycarbonate Dome is required. We use Lexan SLX , the highest grade polycarbonate on the market.

  • The dome collects light from the roof and conducts it to the reflective tube.

Tubing

SkyTunnel™ is available in two types of tubing, the Rigid98 Tube (98% reflection) and Flexi-Tube™

Sky Tunnel Rigid Tube
SkyTunnel™ Rigid98 Tube
Sky Tunnel Rigid Tube
SkyTunnel™ Flexi-Tube™

Length

The SkyTunnel™ tubing shall be a length* of:

Flexi Tube  1.5m, 2.0m, 3.0m
Rigid98 Tube  1.2m, 1.8m, 3.0m
1.5m, 2.1m, 3.1m

Roof Profile

The Sky Tunnel shall be to suit a following type of roofs:

  • Tile, Slate, Custom Orb (CGI), Hob, Metaldek, Flat, etc.
Industrial roof with sky tunnel
Industrial CGI roof
Corrugated roof with Sky Tunnel Rigid Tube
Residential CGI roof
Tile roof
Roof Tile
