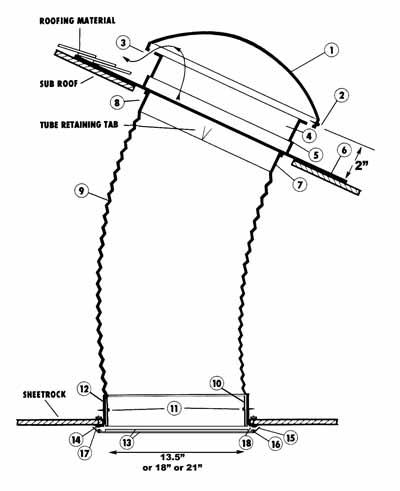

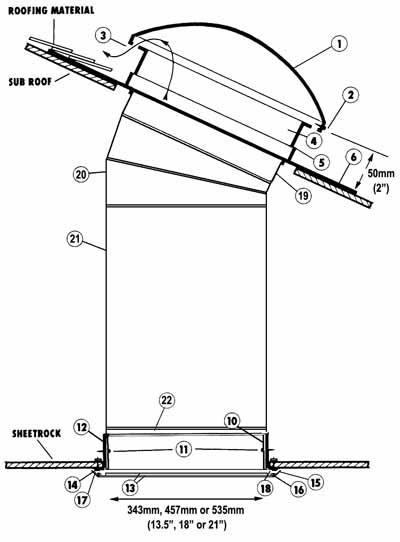

| Sky Tunnel™ XL² with Rigid98 Tube | Sky Tunnel ™ XL²with Flexi-Tube™ |
 |
 |
| 1) DOME - U.V. Stabilized Grade 1 Acrylic (Altuglas – HFI7) or Specialized UV Grade Polycarbonate (Sabic SLX)
2) SCREWS x 8 - to fasten Dome (Class 3 corrosion resistant). 3) VENT/SOLID TABS - ASA Polymer (Luran S 778 T). 4) BREATHER FRAME - ASA Polymer (Luran S 778 T). 5) SEAL - Construction Grade Polyurethane (Bostik Seal’N’Flex 1). 6) SOAKER TRAY - 0.55mm Corrosion Resistant Steel (Colorbond). 7) REFLECTIVE RING - 0.45mm 430BA Stainless Steel. 8 ) TAPE - PVC ducting tape (TESA 4050). 9) FLEXI-TUBE - Composite 3 layers including metalized polyester, aluminum foil and spring wire. 10) LOCKING RING - White ABS Thermoplastic (BASF GP22). 11) SCREWS- to retain Flexi-tube Locking Ring to Ceiling Frame. 12) CEILING FRAME - White ABS Thermoplastic (BASF GP22). 13) DIFFUSERS x 2 – 3mm PMMA (Acrylic) with Seadrift texture. 14) SCREWS- to fasten Ceiling Frame, incl. lock lug and cover cap. 15) DIFFUSER HOLDER - White ABS Thermoplastic (BASF GP22). 16) MAGNET- N45 Grade / Rare Earth (Neodymium Iron Boron). 17) SEAL - 3mm x 6mm Perforated Foam. 18) MAGNET- N45 Grade / Rare Earth (Neodymium Iron Boron). 19) UPPER RING - Rigid98 (Miro Silver). 20) ANGLE ADAPTOR: upto 45o or 90o - Rigid98 (Miro Silver). 21) RIGID LENGTHS: 625mm or 1250mm - Rigid98 (Miro Silver). 22) LOWER RING - Rigid98 (Miro Silver). |
|
